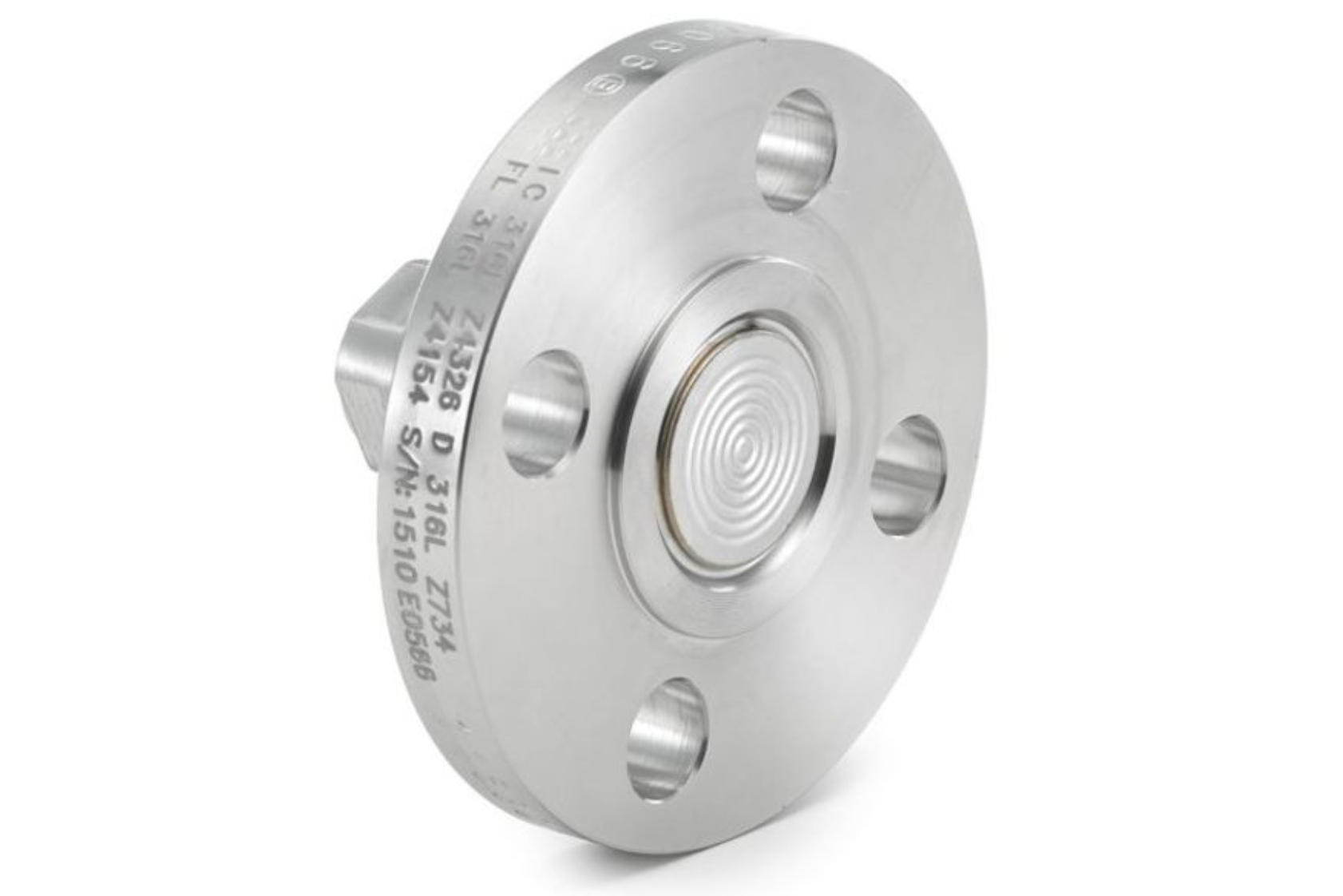

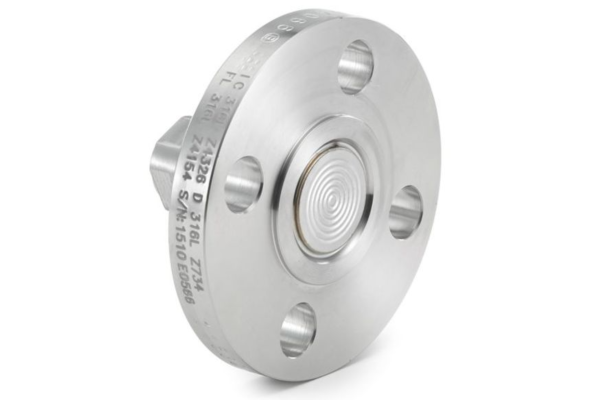

DF-ASME Flush Flanged Diaphragm Seal
The Ashcroft® DF-ASME flush flanged diaphragm seal uses a diaphragm welded directly to the assembly flange. This eliminates much of the cost associated with bulky lower housings made from exotic and expensive wetted materials. The flush-mounted diaphragm prevents clogging and is available in a full range of metallic and coated materials.
Key Features
- Rupture protected due to embedded convolution behind the diaphragm
- NACE compliant assemblies
- Flush design minimizes the use of expensive specialty wetted materials
- Selection of wetted materials
- Flush-mounted diaphragm prevents clogging of process media
- Available with optional Flushing Ring
- Material certificates to EN 10204:2004 3.1
Markets & Applications
- Chemical and Petrochemical
- Energy - Biogas and Biodiesel
- Water and Wastewater
- Oil and Gas - Refinery
- NACE Compliant Processes (Sour Gas Separation)
- Machine Automation
- Pumps and Compressors
