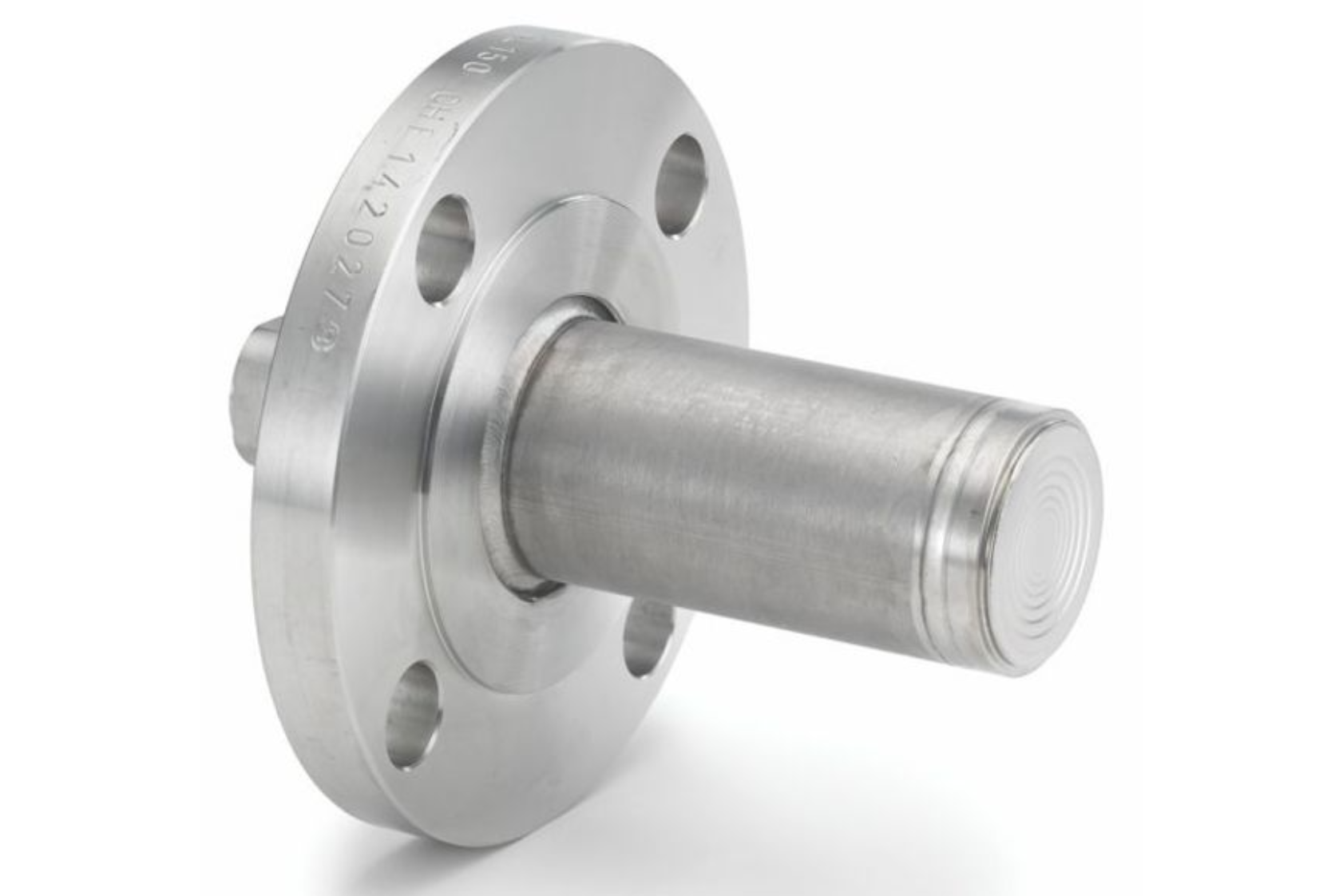

DT-EN Truncated Flanged Diaphragm Seal
The Ashcroft® truncated flanged diaphragm seal model DT protects pressure measuring instruments on isolated pipes or tanks. Used when process compatibility is required, these are also applied when media exhibits high temperature or the potential to clog an instrument connection. Ideal for satisfying many challenging applications.
Key Features
- NACE compliant assemblies
- Designed for flush mounting in insulated pipes and tanks
- Selection of wetted materials
- Rupture protected due to embedded convolution behind the diaphragm
- NACE compliant (optional)
- Material certificates to EN 10204:2004 3.1
- Flush-mounted diaphragm prevents clogging of process media
Markets & Applications
- Chemical and Petrochemical
- Energy
- Oil and Gas
- Pumps and Compressors
