NivoRadar- NR 4100

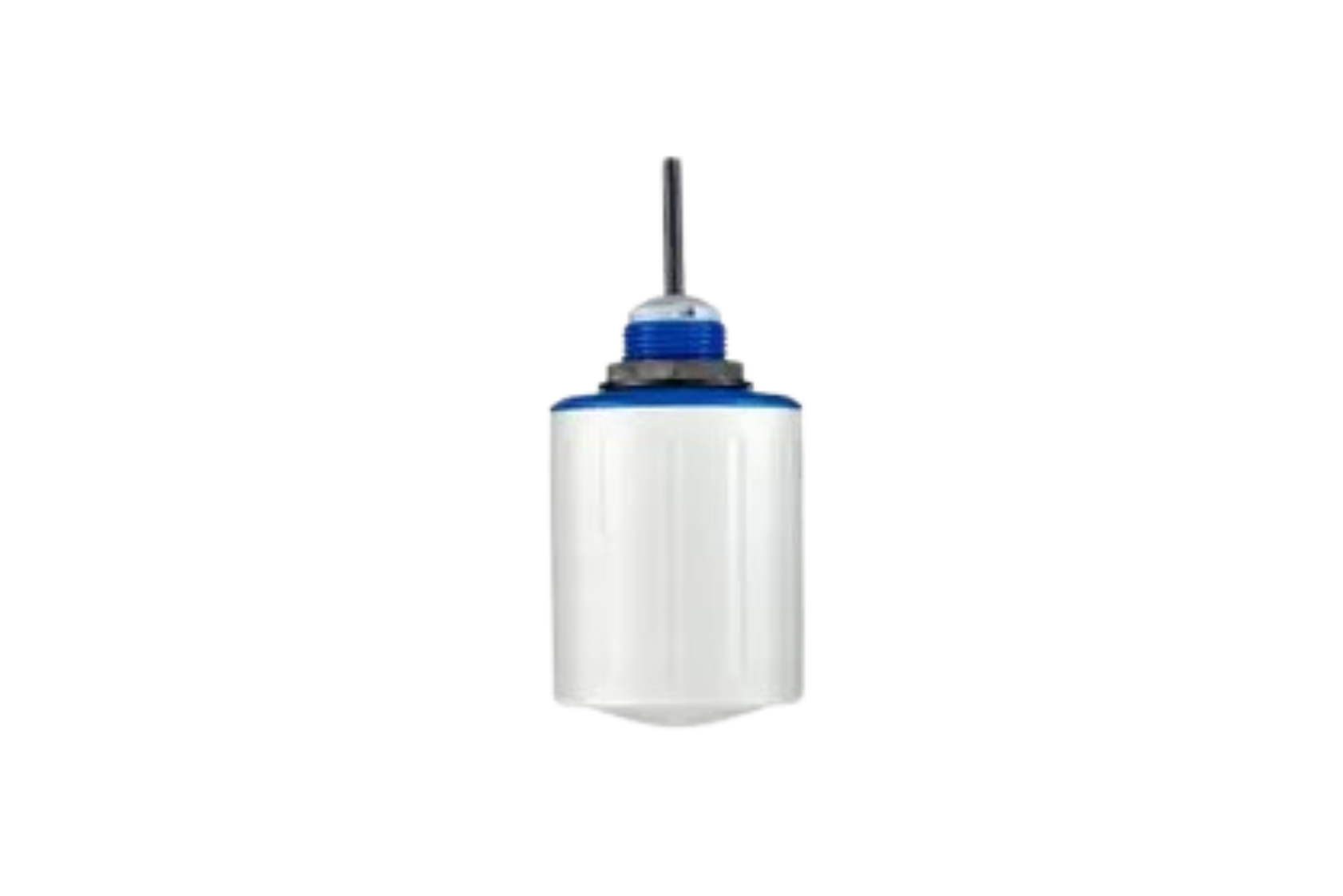

The non-contact 80 GHz FMCW radar sensor NivoRadar® NR 4100 with a very narrow beam angle of 4° is used in various industrial applications in storage silos, process tanks and IBC containers or on stockpiles for continuous level measurement.

The free-radiating level transmitter has a compact design with a 1" process connection (PVDF) and a measuring range of up to 30 m as well as a very fast response time. The radar sensors are food compliant, WHG-certified and suitable for use in hazardous areas. The radar level transmitters have a high dust protection class and can be used in abrasive bulk materials as well as materials prone to caking.

  • Reliable and high-precision measurement results independent of medium properties and ambient conditions for trouble-free operation
  • Inexpensive and at the same time durable, robust and maintenance-free measurement technology
  • Simple and user-friendly configuration, commissioning and diagnosis of the radar level sensor via the UWT LevelApp
